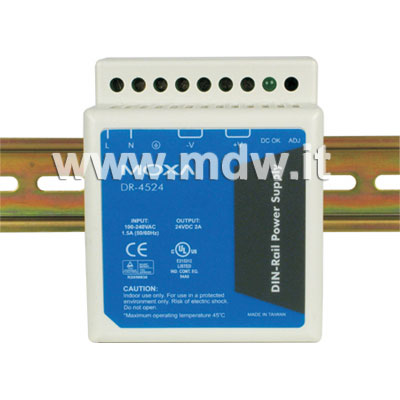

45w/2a din-rail 24 vdc power supply with universal 85 to 264 vac input

scheda tecnica:

Features

* Universal AC input (85 to 264 VAC)
* DC compatible input (120 to 370 VDC)
* CE marked and UL508 listed
* Certified to TÜV EN60950
* Simple snap-on for TS35/7.5 or TS35/15 DIN-Rail
* 100% full load burn-in test
* Free air cooling convection
* Built in EMI filter and low ripple noise
* 105°C output capacitor
* Short circuit, overload, over voltage protected

Introduction

The DR series of power supplies provides a reliable DC power source for any industrial control system. Combining rugged, compact enclosures, incorporating all international standards and approvals, and offering short circuit, over load, over voltage, and over temperature protection, the DR series makes your power supply choice a simple one.These high quality power supplies have passed a 100% full load burn-in test, and are UL/CUL listed, TÜV/CB certified, and CE marked. Models are available with output ratings from 45W to 120W, with 24 VDC output. Customers can choose from a full range of input voltages (85 to 264 VAC and 120 to 370 VDC compatible) making the DR series unbeatable.

Benefits

* Economical and reliable DC power source for industrial devices
* Design for use in harsh industrial environment

Applications

* Factory automation
* Transportation automation
* Utility automation
* Building automation

• Specifications
Power 45 W
Input 85-264 VAC (47-63 Hz)
or 120-370 VDC
Output 48 W, 24 VDC, 0-2 A
Over-voltage Protection 115-135% of rated output voltage
Overload Protection 105-150%
Type Constant Current Limiting
Reset Auto Recovery
Inrush Current 30 A and 115 V, or 60 A and 230 V
Safety Standards TÜV EN60950-1, UL508 Approved
EMC Standards CISPR22 (EN55022) Class B,
EN61000-4-2/3/4/5/6/8/11,
ENV50204, EN61000-3-2, EN50082-2
Dimensions 78 x 67 x 93 mm
Weight 400 g
Operating Temperature -10 to 50°C
(-14 to 122°F)
Relative Humidity 20 to 90% RH
Warranty 3 years
